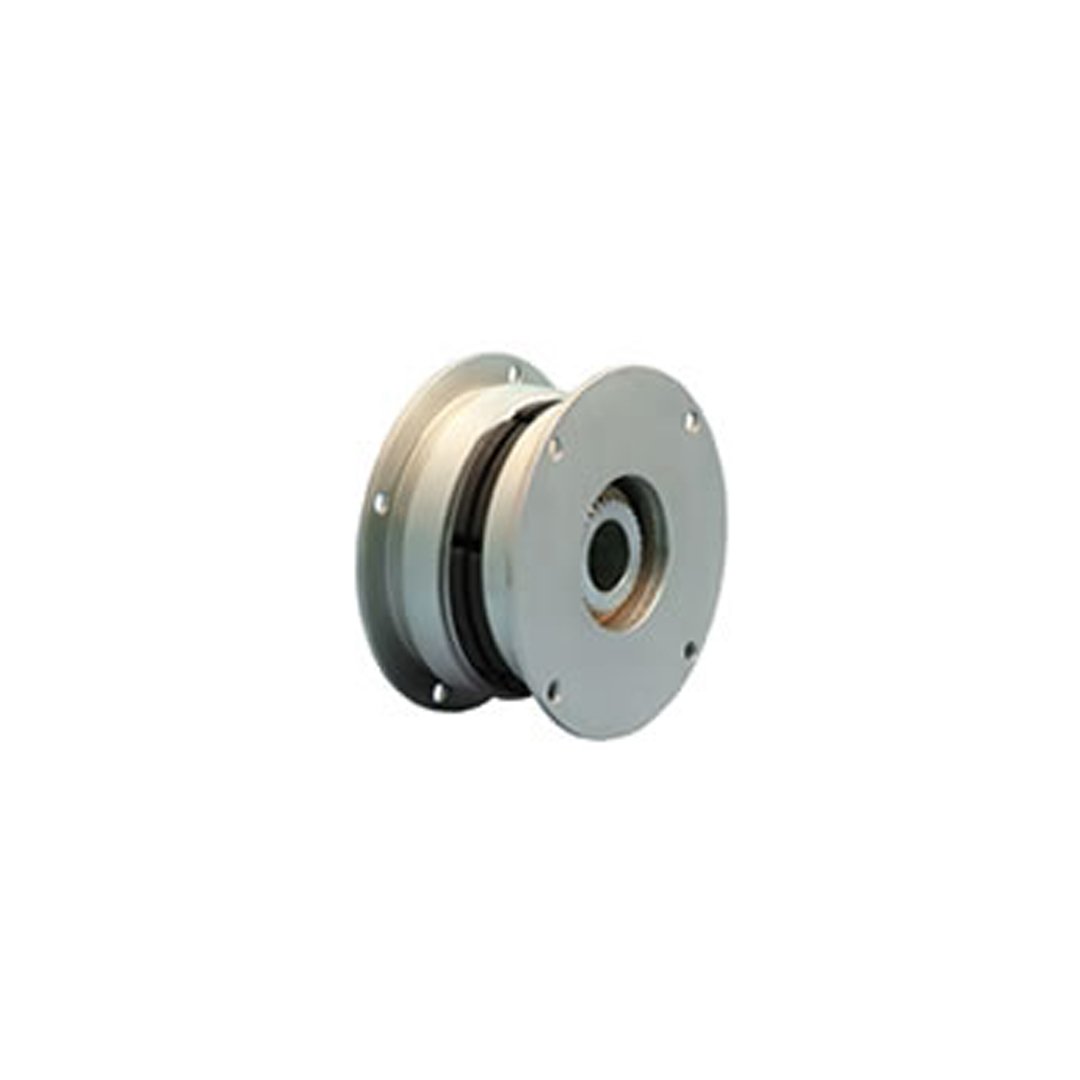

The armature arrangement is a duplex disc type on a common splined hub, which moves axially along the splined hub.These units are less expensive compared to our Type 14.800/14.125 as the combination is provided without the enclosure, shaft & bearings and can be incorporated where space availability is critical. These combinations are used for Dry Applications only.

• Torque range: 7.5 to 2500 Nm
• Zero backlash
• Simple construction
• Compact dimensions
• Maintenance-free operation
• Residual-free operation
• Unique pre-stressed spring design
• High operating frequency
• Long service life
• Single-plate dry type
• No restriction on mounting position
• Easy installation
• Fast switching times
• Class “F” insulated coil
• High operating reliability
• Special friction material
• Stationary field (no slip rings)
• Low inertia of rotating parts
• Consistent operating characteristics

• Machine tools
• Special purpose machines
• Packaging machines
• Conveyors
• Welding machines
