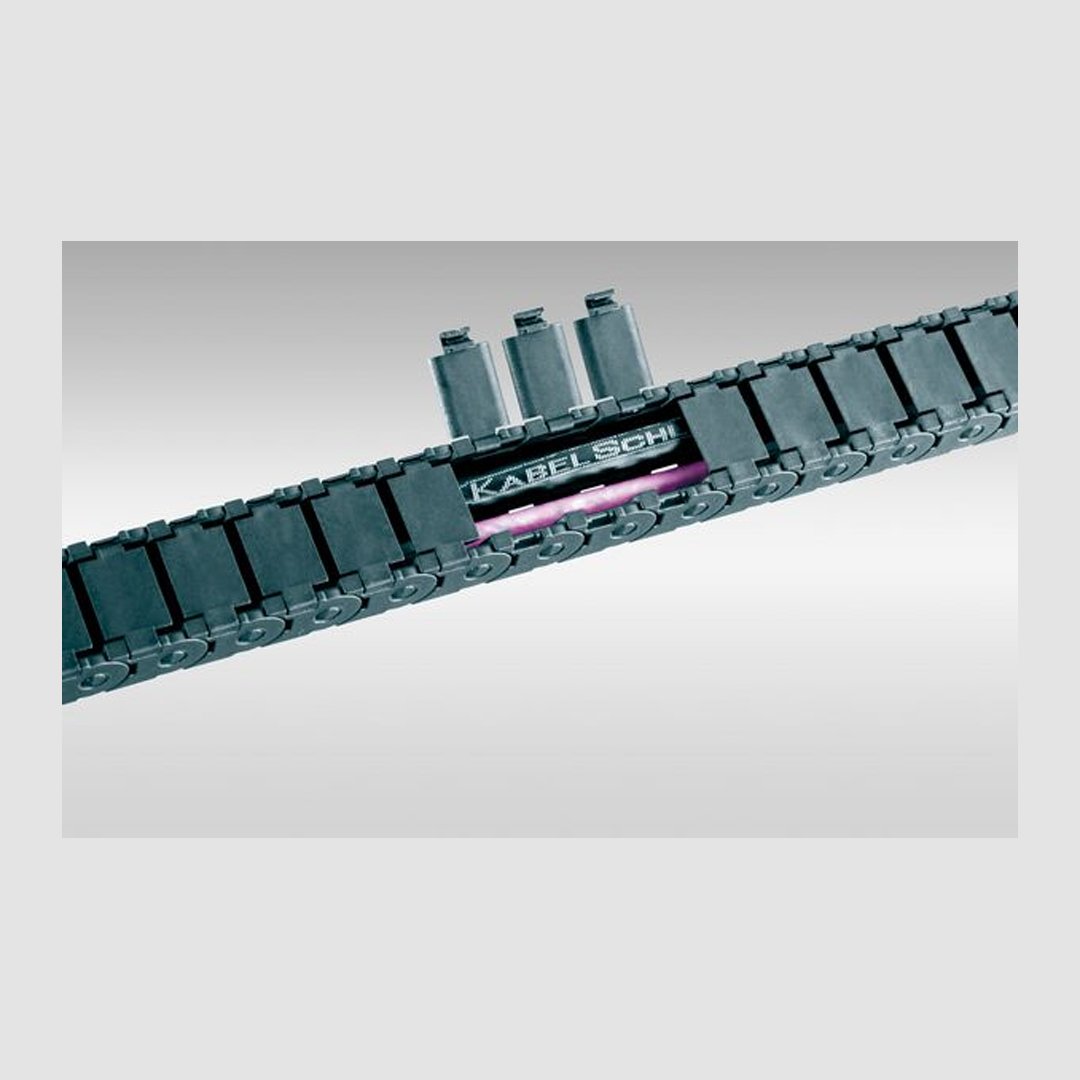

MONO series

Tiles View

Inner height [h]: 10 mm

Inner widths [B]: 6 – 20 mm

Pitch [t]: 13 mm

Bending [KR]: 20 – 37 mm

Inner height [h]: 15 mm

Inner widths [B]: 10 – 40 mm

Pitch [t]: 18 mm

Bending [KR]: 28 – 50 mm

Inner height [h]: 11 mm

Inner widths [B]: 6 – 20 mm

Pitch [t]: 20 mm

Bending [KR]: 18 – 50 mm

Type	h_i[mm]	B_i[mm]	t[mm]	KR[mm]

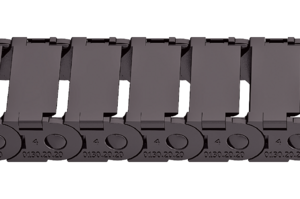

MONO 0130/0132/0134 >	10	6 – 20	13	20 – 37

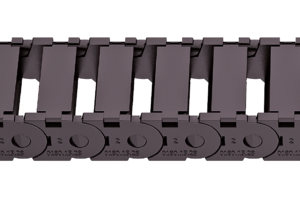

MONO 0180/0182/0184 >	15	10 – 40	18	28 – 50

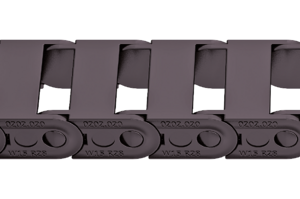

MONO 0202 >	11	6 – 20	20	18 – 50
