List View
| Type | hi[mm] | Bi[mm] | t[mm] | KR[mm] |
|---|---|---|---|---|
| K0650 | 36 – 42 | 68 – 600 | 65 | 75 – 300 |
| K0900 | 50 – 58 | 81 – 700 | 90 | 130 – 385 |

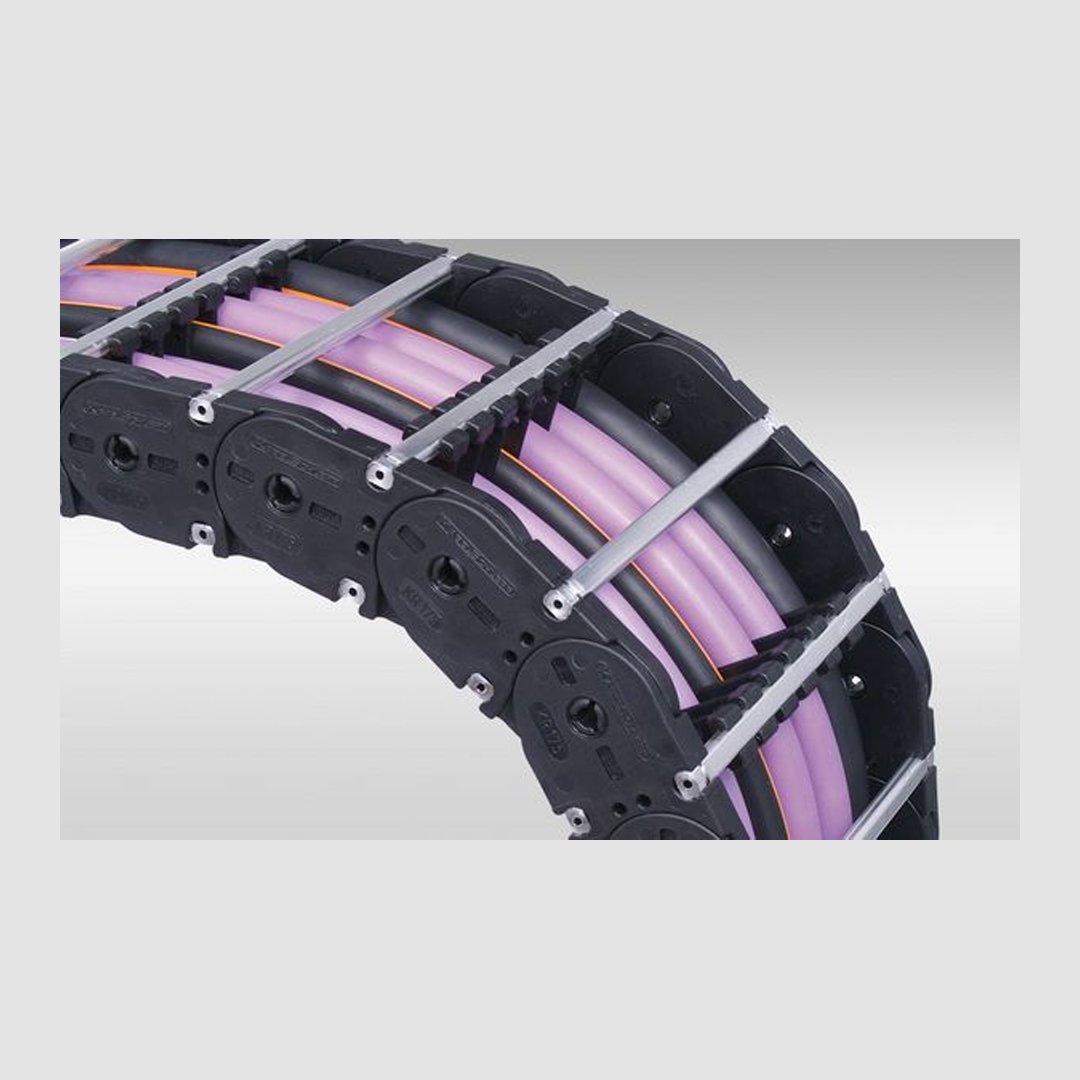

K series
Cost-effective, robust cable carrier – suitable for large additional loads
Features
- Stable sidebands through robust link plate design
- Encapsulated, dirt-resistant stroke system
- Long service due to minimized hinge wear owing to the “life extending 2 disc principle”
- Versions with aluminum stays available in 1 mm width sections up to 700 mm inner width
- Versions with plastic stays available in 8 or 16 mm width sections
- Large selection of vertical and horizontal stay separation options for your cables
