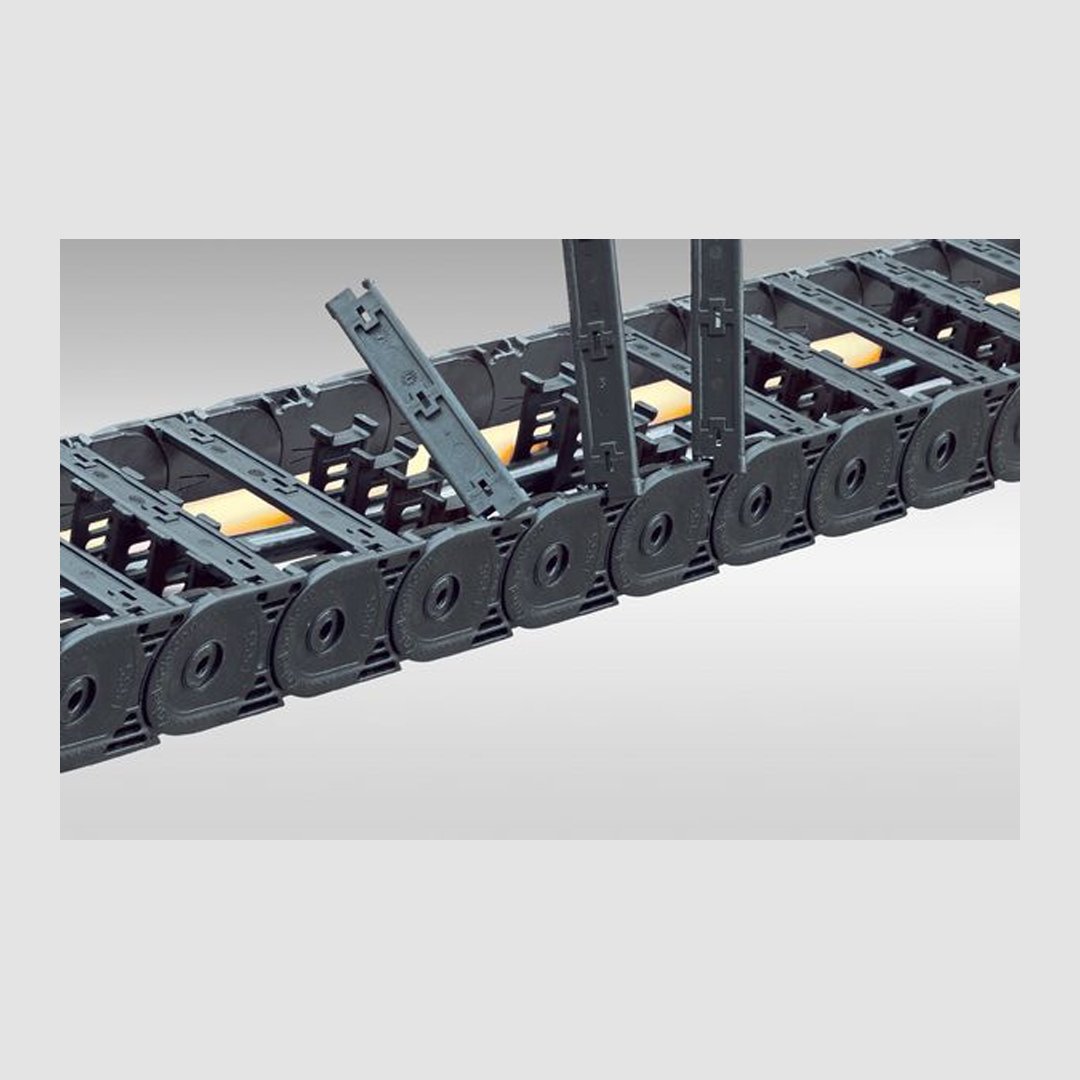

UNIFLEX Advanced series

Light, quiet all-rounder with a wide range of applications


đŸ“„ Download PDF

List View

Type hi[mm] Bi[mm] t[mm] KR[mm]
UA1250 17.5 30 – 50 25 28 – 100
UA1320 20 15 – 65 32 28 – 125
UA1455 26 25 – 130 45.5 52 – 200
UA1555 38 50 – 150 55.5 63 – 200
UA1665 44 50 – 250 66.5 75 – 300
UA1775 56 100 – 400 77.5 90 – 340
UA1995 80 66 – 600 99.5 150 – 500

Features

  • Extensive unsupported lengths
  • High torsional rigidity
  • Good ratio of inner to outer width
  • Numerous custom material types for custom applications available
  • Easy assembly and fast cable laying
  • Assembly tools available
  • Stays with ball joint opening on both sides
  • Many possibilities for internal subdivision
  • Wear surfaces for gliding applications with extended travel lengths
