Product Specifications
| Model | Input | Output | Dimensions in mm (L x W x H) |
|---|---|---|---|
| UM 201 | 415 VAC | 190 VDC, 1 Amp. | 72 x 55.5 x 31 |
| UM 201 A | 230 VAC | 103 VDC, 1 Amp. | |
| UM 201 AV | 415 / 460 VAC | 190 / 205 VDC, 1 Amp. |

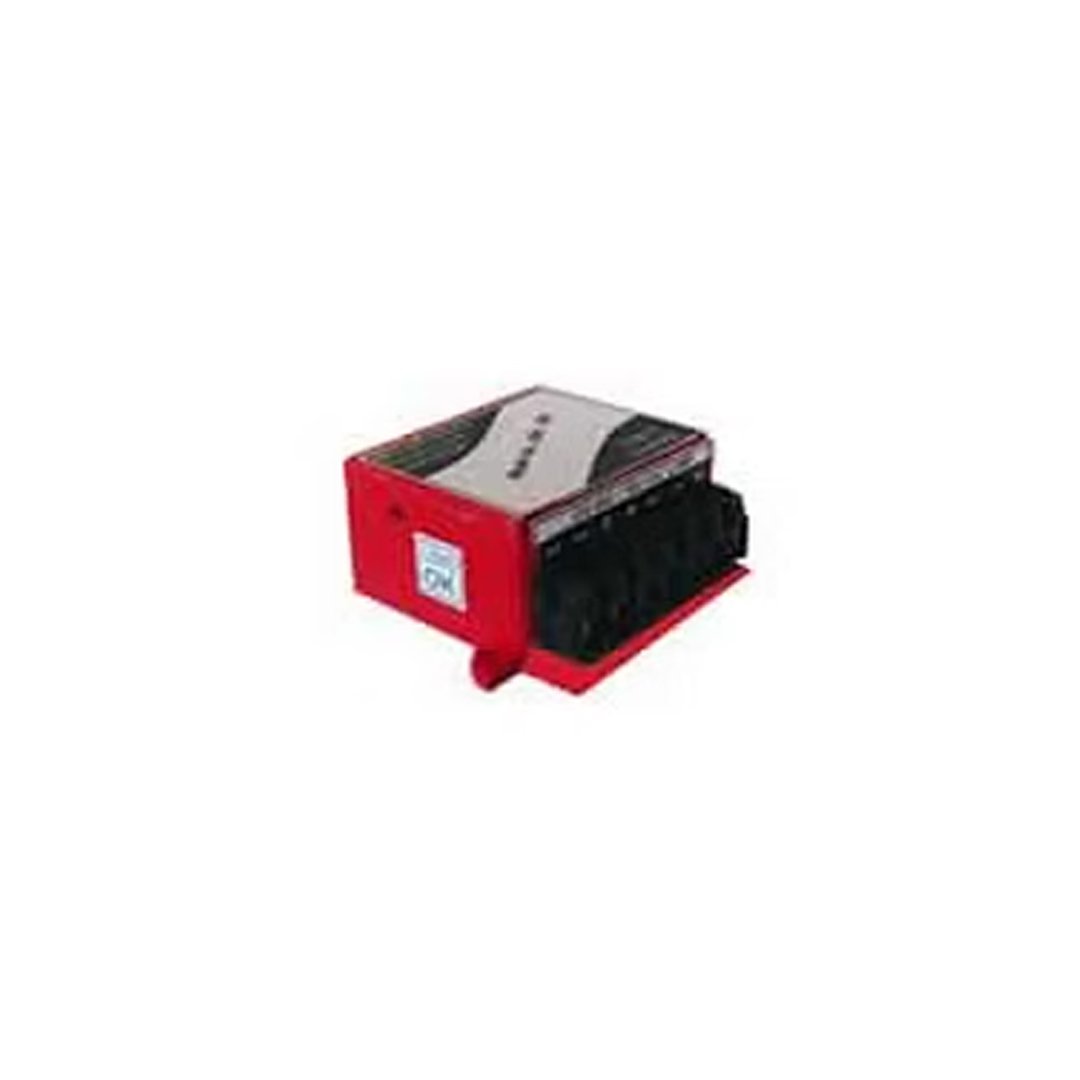

UM – 201 – Series
The type UM-201 series brake rectifier is used to supply DC operated disc brakes on motors where standard release reaction times of the brake are required. UM-201 Series Special rectifier for double coil brake/clutch. can provide quick release/quick release/quick set and power saving feature too.
